Description

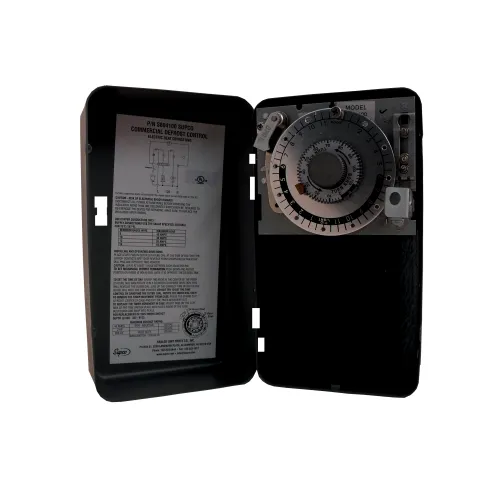

Supco S804100 Commercial Defrost Timer Control, 120V, 40A, 1NO/2NC
Designed to meet a wide variety of customer requirements. These electro-mechanical controls are used on many different types of commercial refrigeration equipment, including walk in boxes, reach in boxes, refrigerated cases and condensing units.
Features and Benefits
- Adjustable defrost cycle duration: 4 to 110 minutes in two-minute increments
- Adjustable defrost initiation frequency: one to six times per day
- Contact arrangements: electric heat, hot gas, or off cycle defrost available
- Heavy-duty steel case with electrical knockouts in the side, back and bottom
- Heavy-duty synchronous motor
Applications
- Commercial refrigeration defrost controls
- Time initiation and time termination
- Time initiation and temperature termination
- Time initiation and pressure termination
Specifications
| Voltage: | 120 |
| Switching: | 1 NO/ 2 NC |
| Switch Rating: | 40 Amps, 2HP, 690 VA, 120-240V AC |
| Time initiated/Time terminated: | Yes |
| Time initiated temperature: | No |
| Pressure terminated: | No |
| Amerage: | 40-amp non-inductive @ 120, 208 or 240 VAC |
| Maximum HP: | 2 hp @ 120, 208 or 240 VAC |
| Pilot Duty: | 690 VA @ 120, 208, or 240 VAC |
| Operating temperature range: | -35 °F to 175 °F (-37°C to 79°C) |
| Overall case dimensions: | 7.697″H x 4.4″W x 3.8″ D |
Cross Reference
| Paragon: | 8041-00 |
| Precision: | 6041-00 |
