Name: Harman Pre-UL Feeder Body Repair Kit (before 2009): 1-00-677150
Brand: hot sale
SKU: JDFQV741803
Price: 17.21 USD
Availability: InStock

Description

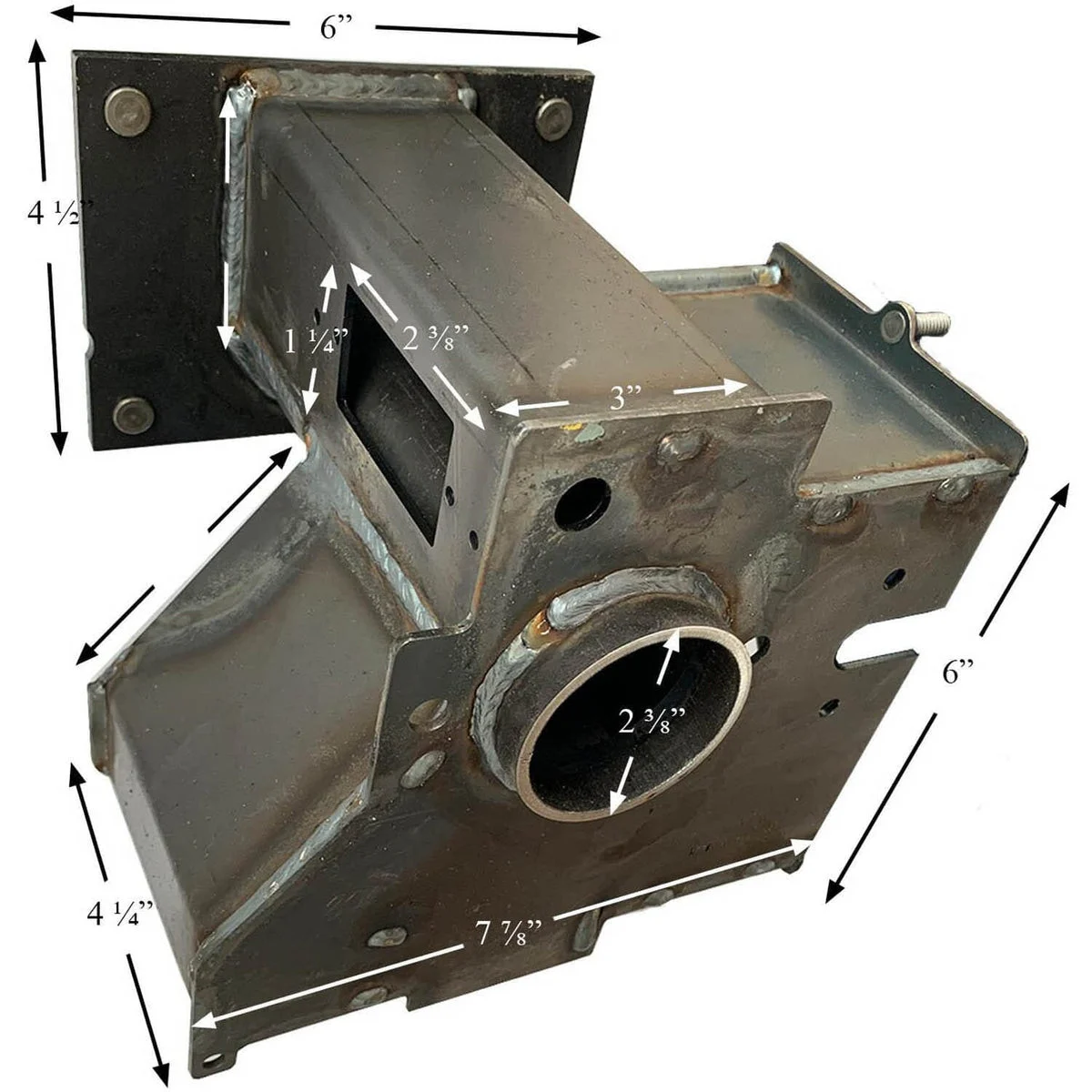

Replacement feeder body weldment for Harman pellet stoves:

Accentra (Pre serial00840001)

Accentra Insert (Pre serial008240096)

Advance (Pre serial008360001)

P38 (Pre serial008080620)

P61 (Pre serial008085055) **Model Discontinued, became P61A**

P61A (Beginning 008085055 ending 008085803)

P68 (Pre serial008280309)

PF100 (Pre serial008350087)

XXV (Pre serial12871)

**Not for use with the Invincible Insert, Invincible RS, Invincible T, or Pellet Pro II, that feeder body is now obsolete.

NOTES:

*When a feeder body is replaced, the auger shaft assembly and the auger feed motor MUST also be replaced.
**Auger shaft assembly, part3-50-00465 is the auger assembly used for all 1-10-677150 Feeder Bodies.
***XXV, Accentra-Cast (also called Accentra 2 in some manuals)and, the Advance used an indirect feed system. The original partfor all indirect feed systems (chain and sprocket) was part3-50-00365. This partwas updated in 2009 to part3-50-00565 to reflect the change to the re-designed direct drive UL feeder bodies. Auger Assembly, part3-50-00465 is the updated SKU.

Here is a list of all of the different motors that are paired with the 3-50-00465 auger shaft assembly:

Accentra-Cast Freestanding – pre serial number: 008400001 | Auger Motor: 3-20-08752
Advance – pre serial number: 0083600001 | Auger Motor: 3-20-08752
XXV – pre serial number: 12871 | Auger Motor: 3-20-08752
Accentra Insert – pre serial number: 008240096 | Auger Motor: 3-20-60906
P38 – pre serial number: 008080620 | Auger Motor: 3-20-60906
P61/P61A – pre serial number: 008085092 | Auger Motor: 3-20-60906
P68 – pre serial number: 008280309 | Auger Motor: 3-20-60906
PF100 Furnace – pre serial number: 008350087 | Auger Motor: 3-20-60906
